Description

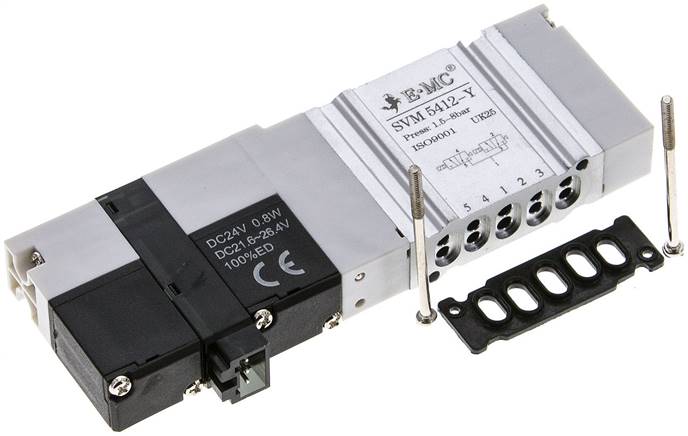

Genuine EMC SVM 5412-Y – SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC). Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: SVM 5412-Y
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC SVM 5412-Y – SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC). Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: SVM 5412-Y
- Brand: EMC
- Product: SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC)
Trusted by engineers across the UK, this SVM 5412-Y (EMC) Solenoid valve for S1V, 2x 3/2-way (NC/NC) is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Body and slider: Aluminum, gaskets: NBR, pilot: Plastic
Operating pressure:
1.5 - 8 bar (5/3-directional: 2 - 8 bar)
Media:
oiled and unoiled filtered compressed air
Switching time:
<15 ms, max. 5 switching cycles / sec. (5/3-directional: max. 3 switching cycles / sec.)
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0.8 W / valve solenoid
Protection class:
IP 40
Service life:
min. 40 million switching cycles
Version:
with LED switching status display
Scope of delivery:
Valve including screws and gasket
Note:
These valves can simply be screwed onto a valve position of an existing valve terminal to extend the functional range of a standard terminal or to replace a defective valve.
| Version | Connection plate valve |
| function | 2x 3/2-way (NC/NC) |
| Code | Y |
| flow [l/min] | 330 |
| Weight | 80 g / pcs |
| GTIN | 4050571917036 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
