Description

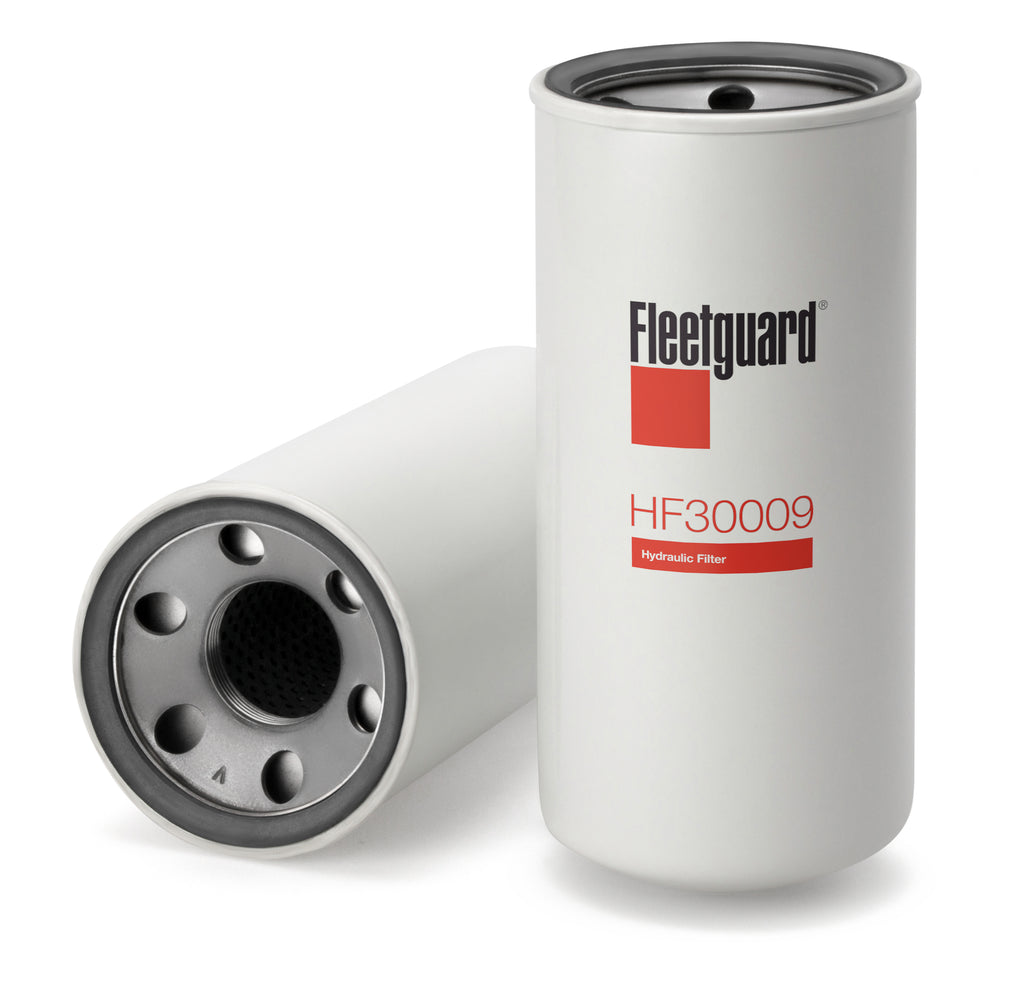

Fleetguard® HF30009 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.
Specifications:
| Thread Size | 1.00 1/2-16 UN-2B |
| Length | 8.02 inch |
| Gasket OD | 3.45 inch |
| Standpipe | NO |
| TWA MICRON @ BETA=20 | 3.00 micron |
| TWA MICRON @ BETA=75 | 4.50 micron |
| Largest OD | 3.68 inch |
| Gasket Inside Diameter | 2.97 inch |
| Seam OD | 3.72 in |
| TWA MICRON @ BETA=2 | 1.00 micron |
| TWA MICRON @ BETA=200 | 6.00 micron |
