Description

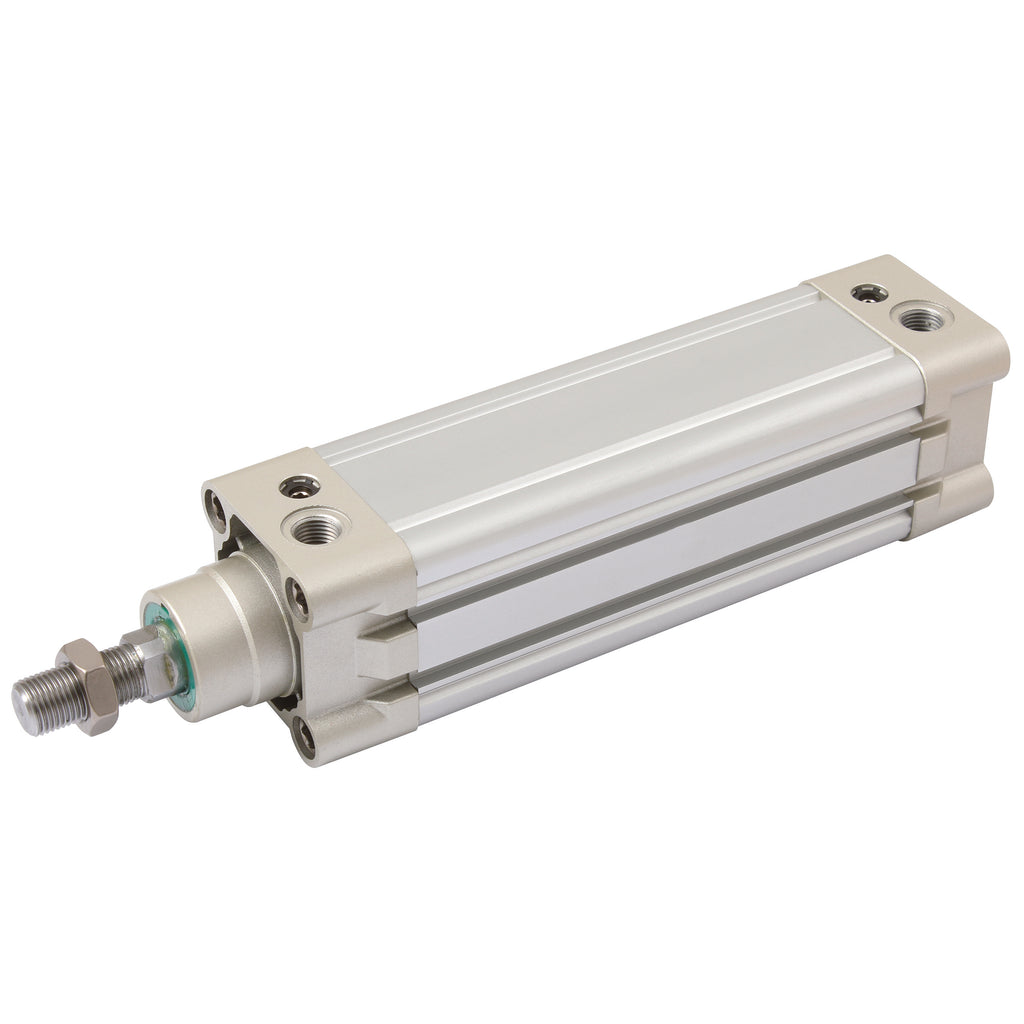

The FT Pro KI-100X1000-S-G is a 100mm Piston X 1000mm Stroke Double Acting Cylinder.
| Manufacturer | FT Pro |
| MPN | KI-100X1000-S-G |
| Product Type | 100mm Piston X 1000mm Stroke Double Acting Cylinder |
| Barrel Configuration | Extruded with Reed Switch Slots |
| Barrel Material | Aluminium Alloy |
| Bore Size mm | 100 |
| Cushioning | Adjustable |
| Piston Rod Material | Carbon Steel Chrome Plated |
| Piston Rod Thread | M20 x 1.5 |
| Piston Rod Thread Gender | Male |
| Port Size Inch | 1/2" |
| Stroke Length | 1000 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressure | 1 to 10 |
| Working Temperature | -20°C to +80°C |
