Description

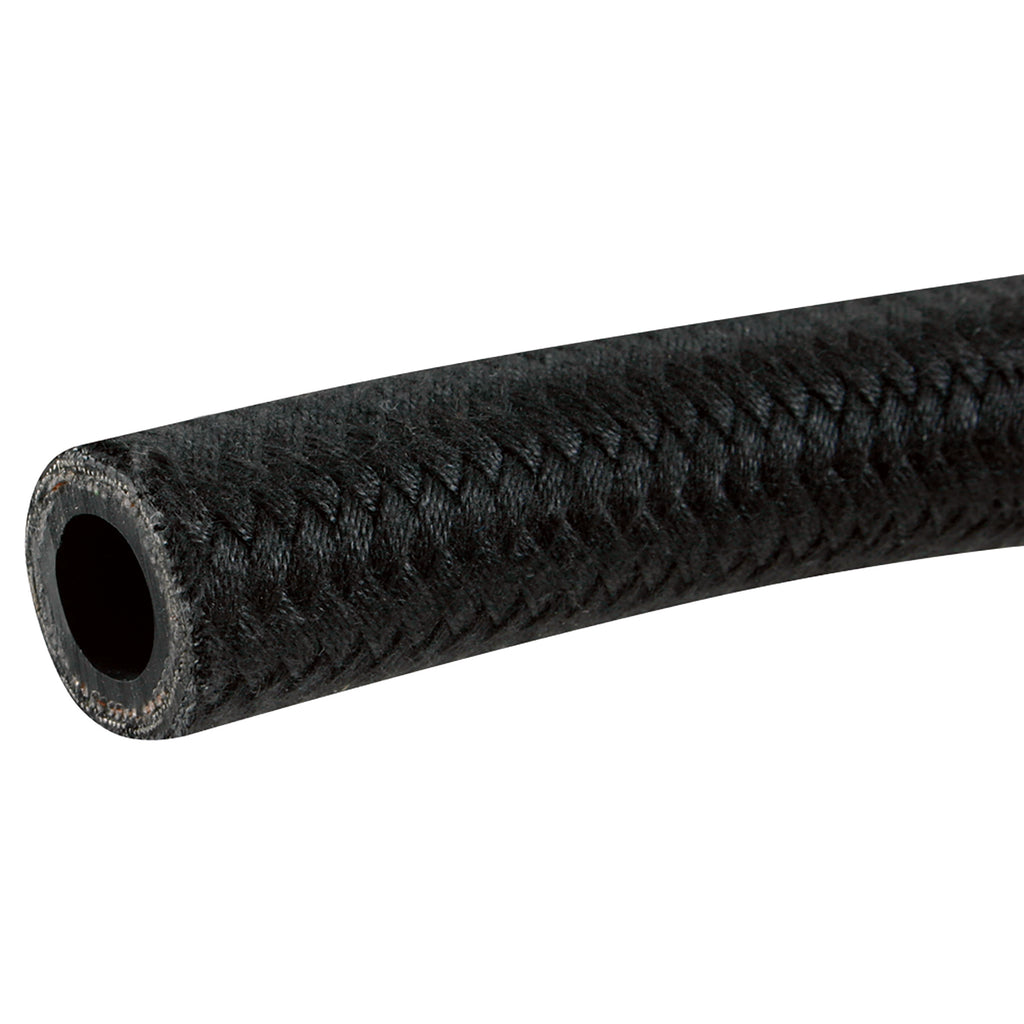

The Danfoss Aeroquip 1503-10 is a 23.4mm OD X 12.7mm ID Hydraulic Hose Sae 100R5.
| Manufacturer | Danfoss Aeroquip |
| MPN | 1503-10 |
| Product Type | 23.4mm OD X 12.7mm ID Hydraulic Hose Sae 100R5 |
| Bend Radius | 139.7 |
| Burst Pressure bar | 490 |
| Colour | Black |
| Hose Diameter (DN) | 23.4 |
| Inside Diameter | 12.7 |
| Length Metres | 1 |
| Material | Textile Braid |
| Maximum Working Pressure | 122 |
| Outside Diameter | 23.4 |
| Series | Cotton Braided |
| Standard | SAE 100R5 |
| Working Temperature | -40°C to +100°C |
