Description

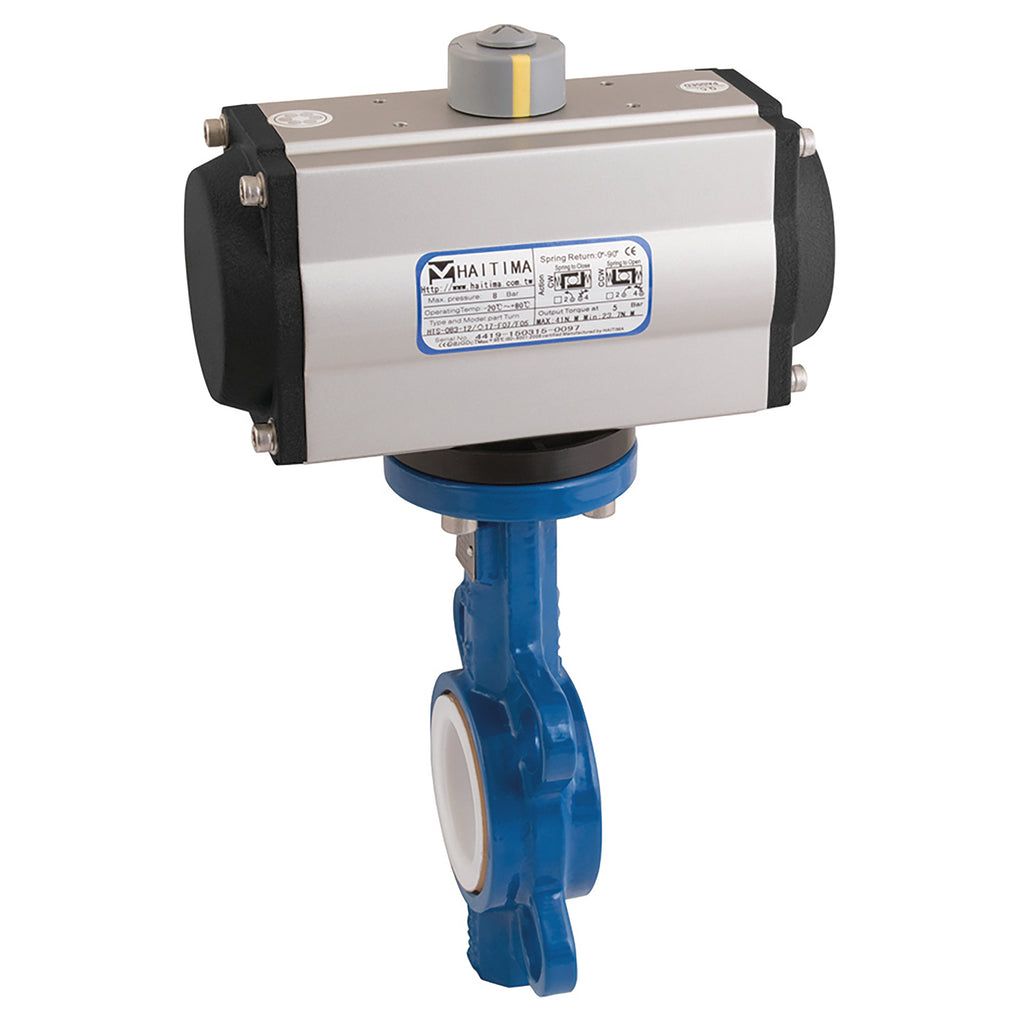

The Haitima, FT Pro HDA 2014WH 10 is a 2.1/2" Wafer Bfly Ss/Pt F/W Hait Da Act.
| Manufacturer | Haitima, FT Pro |
| MPN | HDA 2014WH 10 |
| Product Type | 2.1/2" Wafer Bfly Ss/Pt F/W Hait Da Act |
| Actuator Working Temperature | -20°C to +90°C |
| Design | Wafer Pattern |
| Disc Material | Stainless Steel |
| End Connection | Flanged BS 10 Table D/E, Flanged PN6, Flanged PN10, Flanged PN16, Flanged ANSI150 |
| Function | Double Acting |
| Liner | PTFE on Silicone |
| Size | 2.1/2" |
| To Suit Flanges | BS 10 Table D/E, PN6/PN10/PN16/ANSI150 |
| Valve Material | Cast Iron |
| Valve Working Pressure bar | 16 |
| Valve Working Temperature | -30°C to +180°C |
