Description

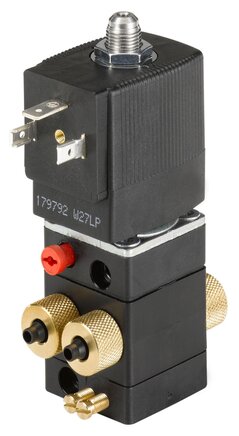

Burkert 5420 Valve – 230V AC – 5420-G03,0-BA61-BA61-B5-230/56 is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Main valve seal material | NBR (nitrile rubber) |
| Pilot control seal material | NBR (nitrile rubber) |
| Nominal pressure min | 2.5 bar |
| Nominal pressure max | 10 bar |
| Temperature ambient min | -10 °C |
| Temperature ambient max | 55 °C |
| Temperature medium min | -10 °C |
| Temperature medium max | 60 °C |
| Main valve nominal diameter 1 (P) (mm) | 3 mm |
| Voltage min / Rated voltage | 230 V |
| Voltage max / Rated voltage | 230 V |
| AC voltage | Yes |
| DC voltage | No |
| Voltage frequency | 50/60 Hz |
| Pilot control material in contact with the medium | PA (polyamide) |
| Precontrol material in contact with the environment | PA (polyamide) |
| Main valve material in contact with the medium | PA (polyamide) |
| Main valve material in contact with the environment | PA (polyamide) |
| How it works | G - open in rest position - pressure port 1 (P) to work port 2 (B), work port 4 (A) to outlet 3 (R) opened |
| Weight | 310 g / pcs |
| Customs duty number | 84812090 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
