Description

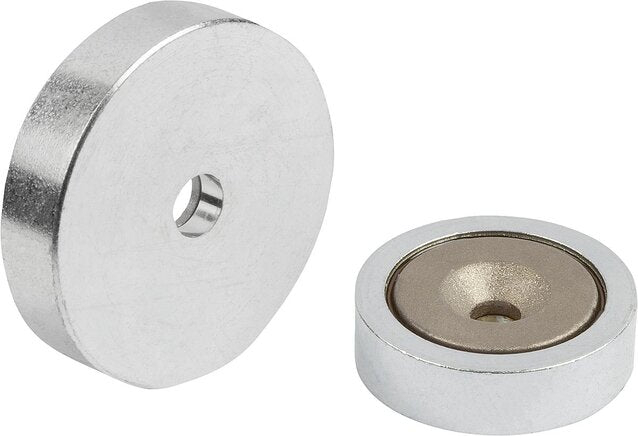

Norelem 09071-20-20 – Magnet
Genuine Norelem part 09071-20-20. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.
- Part number: 09071-20-20
- Product: Magnet
- Brand: Norelem
- Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.
Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.
Item description
· Flexible, easily removable, non-positive fastening elements· Areas of application: mechanical engineering, plant engineering
· Temperature range up to 280 °C
· High adhesive force
· Assembly: Pressing in, screwing in or gluing in
Material:
Housing steel.
Magnetic core SmCo (samarium cobalt).
Design:
Housing, galvanized.
Note:
Flat gripper, shielded system. Flat grippers with SmCo core have a three to five times higher adhesion force than AlNiCo or hard ferrite grippers.
Temperature range:
max. 280 °C.
Assembly:
The magnets can be mounted by pressing in, screwing in or gluing.
Drawing reference:
1) Adhesive surface
