Description

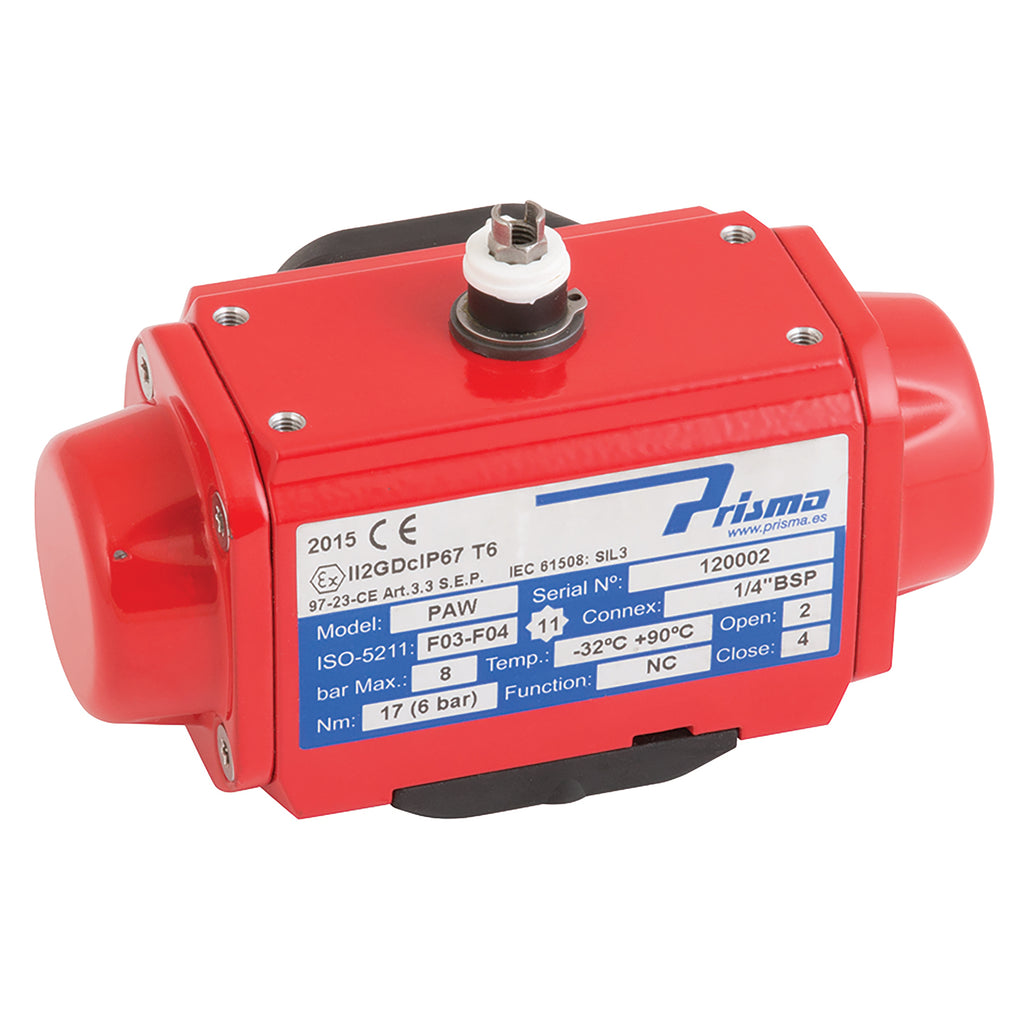

The Prisma PA15 is a Pa15 Da Actuator.
| Manufacturer | Prisma |
| MPN | PA15 |
| Product Type | Pa15 Da Actuator |
| Actuator Material | Epoxy Coated Aluminium |
| Actuator Working Temperature | -32°C to +80°C |
| Air Consumption LPM Closing | 0.82 |
| Air Consumption LPM Opening | 0.65 |
| Approvals | ATEX, SIL3 |
| Function | Double Acting |
| Rotation Angle | 0-90° |
| Valve Working Pressure bar | 8 |
| Working Torque Nm | 116.5 |
