Description

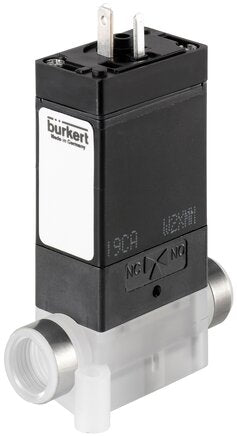

Burkert 0127 3/2-Way Solenoid Valve – 24V DC – 0127-T-01,5-CC-TZ-UNFB-024/DC- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | FFKM (perfluoro rubber) |
| Differential pressure max | 2 bar |
| Nominal pressure min | 0 bar |
| Nominal pressure max | 2 bar |
| Temperature ambient min | 10 °C |
| Temperature ambient max | 55 °C |
| Temperature medium min | 10 °C |
| Temperature medium max | 50 °C |
| Valve nominal width | 1.5 mm |
| Line connection 2 type | Internal thread |
| Line connection 2 thread type | UNF flat bottom |
| Line connection 2 thread designation | 1/4-28 |
| Voltage min / Nominal voltage | 24 V |
| Voltage max / Nominal voltage | 24 V |
| AC voltage | No |
| Direct voltage | Yes |
| How it works | T - universally applicable - pin assignment 1 (P/NC), 2 (A/in/out) and 3 (R/NO) according to use |
| Rated power | 3 W |
| Weight | 70 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
Need help identifying the correct part? Call 01530 229728 or email sales@roladex.co.uk.
