Description

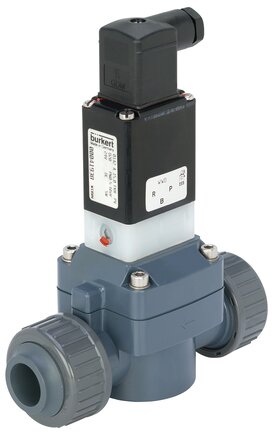

Burkert 0142 2/2-Way Solenoid Valve – 230V AC – 0142-A-15.0-AA-PV-KM25-230/56- is a genuine Bürkert component, ideal for maintenance, replacement and new installations. Designed for reliable performance in demanding industrial and process environments.
If you’re matching an existing unit, the order number and configuration code are the safest way to confirm compatibility. Need help cross-referencing? Roladex can assist.
Key features
- Genuine Bürkert component for industrial fluid control
- Suitable for automation, process and OEM maintenance
- Designed for dependable operation and long service life
- Specification details listed below
Properties
| CE mark | Yes |
| Seat seal material category | Elastomers |
| Seat seal material | EPDM (Ethylene-propylene-diene rubber) |
| Seal to the outside material | EPDM (ethylene-propylene-diene rubber) |
| Pilot control seal material | EPDM (ethylene-propylene-diene rubber) |
| Nominal pressure min | 0.5 bar |
| Nominal pressure max (liquid) | 6 bar |
| Temperature ambient max | 40 °C |
| Temperature medium min | 0 °C |
| Temperature medium max | 50 °C |
| Main valve nominal diameter 1 (P) (mm) | 15 mm |
| Main valve nominal diameter 1 (inch) | 9/16 inch |
| Line connection 2 type | Adhesive sleeve |
| Line connection 2 size DN | DN 15 |
| Voltage min / nominal voltage | 230 V |
| Voltage max / nominal voltage | 230 V |
| AC voltage | Yes |
| DC voltage | No |
| Voltage frequency | 50/60 Hz |
| Pre-control material in contact with medium | PVDF (polyvinylidene fluoride) |
| Main valve material in contact with the medium | PVC (polyvinyl chloride) |
| How it works | A - closed in rest position - pressure port 1 (P/NC) |
| Nominal power | 5 W |
| Weight | 850 g / pcs |
| Customs duty number | 84818079 |
| Manufacturer | Burkert |
Supply & support
- UK supply from Roladex Industrial
- Trade pricing available
- Fast UK-wide delivery options
- Technical support for selection and equivalents
Need help identifying the correct part? Call 01530 229728 or email sales@roladex.co.uk.
