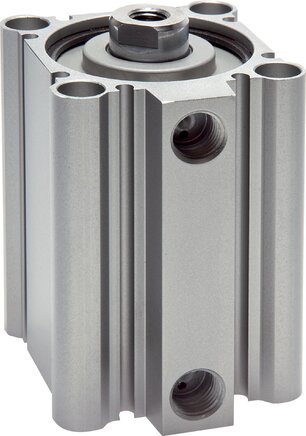

SQ 100/75 SZ (EMC) Compact Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm

Genuine EMC SQ 100/75 SZ – SQ 100/75 SZ (EMC) Compact Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SQ 100/75 SZ
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SQ 100/75 SZ – SQ 100/75 SZ (EMC) Compact Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SQ 100/75 SZ
• Brand: EMC
• Product: SQ 100/75 SZ (EMC) Compact Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm

Trusted by engineers across the UK, this SQ 100/75 SZ (EMC) Compact Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

EMC Compact – Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm

Genuine EMC part Compact. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Compact
• Product: Cylinders, Double Acting, Piston 100 Mm, Stroke 75 Mm
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: anodized aluminum, piston rod: hard chromium plated steel, seal: NBR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•outstanding value,
•cylinder switches can be mounted on different sides,
•main mounting dimensions identical to SMC Series CQ2A (CQ2) Piston diameter [mm] 100 Stroke [mm] 75 H (piston rod thread) M 20 G (compressed air port) G 3/8" Repair sets SQN 100 REP A [mm] 75.0 B [mm] 63.0 C [mm] 27 D [mm] 30 E [mm] 117 F [mm] 13.0 J [mm] 6.5 K [mm] 27 L [mm] 12.0 M [mm] 94 N [mm] 11.0 O [mm] 17 (11 deep) P M 12 P1 [mm] 35.5 Q [mm] 23.0 Weight 3.6 kg / pcs GTIN 4050571638443 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
