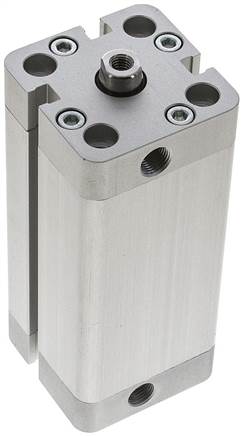

Airtec | NXE 32/50 | Single Acting | Compact Cylinder | Stroke 50mm | Bore 32mm

Manufacturer: Airtec

MPN: NXE 32/50

Item description

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread male thread Piston diameter [mm] 32 Stroke [mm] 50 Version Standard G1 (piston rod female thread) M 6 M (compressed air port) G 1/8" Repair sets NXE 32 REP A [mm] 50 B [mm] 12 C [mm] 6 D [mm] 5,2 E M 6 F [mm] 9,0 J [mm] 64,5 L [mm] 4 N [mm] 8,0 O [mm] 14,50 P [mm] 32 Q [mm] 12 T [mm] 10 U [mm] 5,5 Z [mm] 6,0 Weight 480 g / pcs GTIN 4050571532512 Customs duty number 84799070 RoHS compliant Yes Manufacturer Airtec
