Description

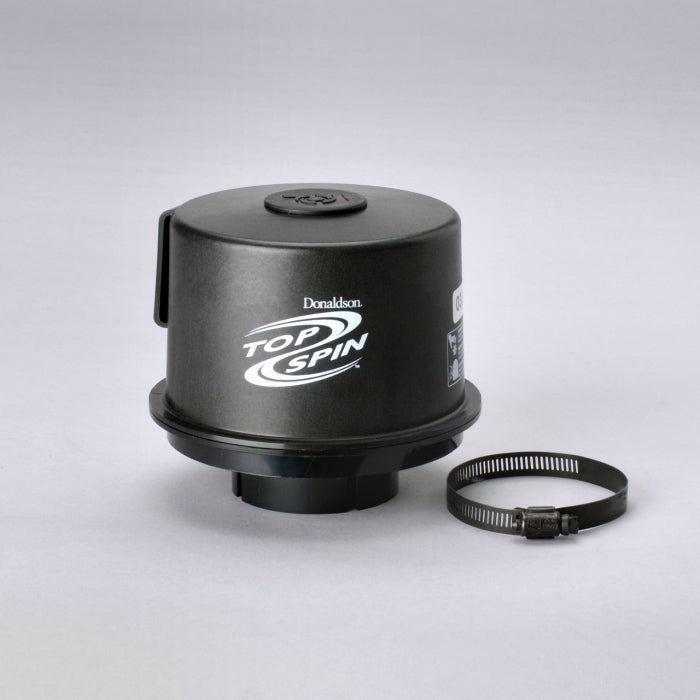

Donaldson TopSpin™ pre-cleaners extend primary air filter life, boost system efficiency, and extend engine life.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
• Separates up to 85% of incoming contaminant per ISO 5011/SAE J726.
• Self-cleaning ? no maintenance bowl to clean.
• Quick installation ? one clamp to tighten.
• Lighter than competitive pre-cleaners.
Specifications:
| Height | 146.81 mm (5.78 inch) |
| Body Diameter Maximum | 162.1 mm (6.38 inch) |
| Outlet ID | 76.96 mm (3.03 inch) |
| Efficiency | 85 |
| Efficiency Test Std | ISO 5011, SAE J726 |
| Rated Flow LR | 2.8 m³/min (99 cfm) |
| Rated Flow HR | 5.7 m³/min (201 cfm) |
| Restriction LR | 2.45 mbar (0.98 inch H2O) |
| Restriction HR | 11.87 mbar (4.76 inch H2O) |
| Brand | TopSpin™ HD |
