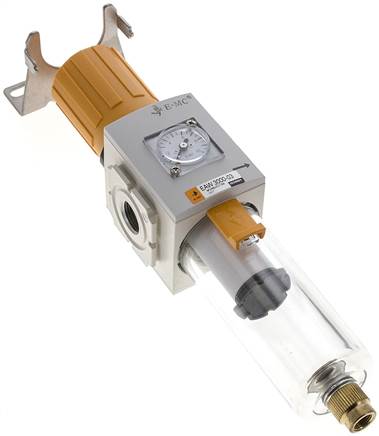

EAW 3000-03 (EMC) Eco-Line filter regulator, G 3/8", drain semi-automatic
Product Description
Genuine EMC EAW 3000-03 – EAW 3000-03 (EMC) Eco-Line filter regulator, G 3/8", drain semi-automatic. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: EAW 3000-03
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC EAW 3000-03 – EAW 3000-03 (EMC) Eco-Line filter regulator, G 3/8", drain semi-automatic. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: EAW 3000-03
- Brand: EMC
- Product: EAW 3000-03 (EMC) Eco-Line filter regulator, G 3/8", drain semi-automatic
Trusted by engineers across the UK, this EAW 3000-03 (EMC) Eco-Line filter regulator, G 3/8", drain semi-automatic is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Version:Reversible pressure regulator (with relieving system) and additional filtering using the centrifugal principle and a sintered filter
Materials:
Bodies: aluminum, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1.5 to 10 bar
Pressure regulation range:
0.5 to 9 bar
Pressure gauge display:
0 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter regulator including pressure gauge and mounting bracket
Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Fixing bracket included in the scope of delivery,
•Space-saving compact pressure gauge already mounted,
•Double-walled transparent vessel (not series 2A)
