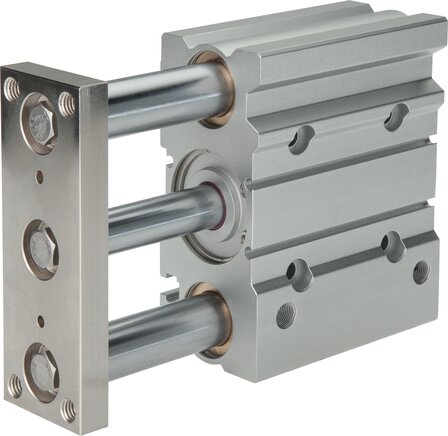

SGM 20/200 (EMC) Guide Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm

Genuine EMC SGM 20/200 – SGM 20/200 (EMC) Guide Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SGM 20/200
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SGM 20/200 – SGM 20/200 (EMC) Guide Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SGM 20/200
• Brand: EMC
• Product: SGM 20/200 (EMC) Guide Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm

Trusted by engineers across the UK, this SGM 20/200 (EMC) Guide Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

EMC Guide – Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm

Genuine EMC part Guide. Ideal for maintenance and replacement on pneumatic systems. If you’re matching an existing unit, the part number is the safest way to confirm compatibility.

• Part number: Guide
• Product: Cylinder, With Slide Bearing, Pistons 20Mm,Stroke 200Mm
• Brand: EMC
• Support: Need help cross-referencing? Send us your existing code/label and we’ll confirm.

Delivery & trade: Fast UK supply available. Request a quote for best pricing on quantities.

---

Item description

Materials:
Body: Anodized aluminum, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminum, Gaskets: NBR / PUR

Temperature range:
-10 to +60 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM Piston diameter [mm] 20 Stroke [mm] 200 Version with slide bearing G (compressed air port) G 1/8" Repair sets SGM 20 REP lateral force permissible [N] 49 permissible torque at the end-?plate [Nm] 1.06 C [mm] 37.0 D [mm] 12 D1 [mm] 10 E [mm] 51.0 FA [mm] 10 FB [mm] 16 GA [mm] 9.0 GB [mm] 10.5 GC [mm] 10.5 GD [mm] 12.5 GE [mm] 10.5 H [mm] 83 J [mm] 25.0 K [mm] 77 L1 [mm] 6 L2 [mm] 3 M M 6 M1 [mm] 12 ML [mm] 13 MM M 5 N [mm] 17 NN [mm] 120 P [mm] 5.2 PA (+0.03 / -0) [mm] 3 PP [mm] 3.5 Q [mm] 18 QL [mm] 70 R (± 0.02) [mm] 28 RR [mm] 54 T [mm] 9.5 (5.5 deep) V [mm] 44 VA [mm] 8.4 VB [mm] 5.4 VC [mm] 4.5 VD [mm] 2.8 VE [mm] 7.8 W [mm] 36 WA [mm] 72 WB [mm] 24 WL [mm] 81 WW [mm] 30 Weight 2.2 kg / pcs GTIN 4050571873530 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
