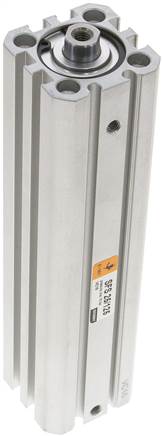

SFS 25/125 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 125 mm

Genuine EMC SFS 25/125 – SFS 25/125 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 125 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 25/125
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 25/125 – SFS 25/125 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 125 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 25/125
• Brand: EMC
• Product: SFS 25/125 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 125 mm

Trusted by engineers across the UK, this SFS 25/125 (EMC) ISO 21287 cylinders, double acting, piston 25 mm, stroke 125 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminum, cylinder tube: anodized aluminum, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread -B Piston diameter [mm] 25 Stroke [mm] 125 Version Standard KF (piston rod female thread) M 6 G (compressed air port) M 5 Repair sets SFS 25 REP AD [mm] 12 AF [mm] 10 BG [mm] 15 CH [mm] 10 E [mm] 40.0 E1 [mm] 0 LA [mm] 5 PL1 [mm] 17.5 PL2 [mm] 5.5 RT M 5 S [mm] 0 TG [mm] 26.0 WH [mm] 6 ZA [mm] 39 ZB [mm] 45 Weight 550 g / pcs GTIN 4050571927677 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
