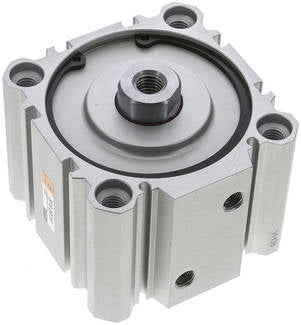

SFS 80/15 (EMC) ISO 21287 cylinders, double acting, piston 80 mm, stroke 15 mm

Genuine EMC SFS 80/15 – SFS 80/15 (EMC) ISO 21287 cylinders, double acting, piston 80 mm, stroke 15 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.

• Part Number: SFS 80/15
• Brand: EMC
• Product Type: Pneumatic Component

Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.

---

Genuine EMC SFS 80/15 – SFS 80/15 (EMC) ISO 21287 cylinders, double acting, piston 80 mm, stroke 15 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.

• Part Number: SFS 80/15
• Brand: EMC
• Product: SFS 80/15 (EMC) ISO 21287 cylinders, double acting, piston 80 mm, stroke 15 mm

Trusted by engineers across the UK, this SFS 80/15 (EMC) ISO 21287 cylinders, double acting, piston 80 mm, stroke 15 mm is available for fast nationwide delivery from Roladex Industrial Supplies.

---

Item description

Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 100: hard chromium plated steel), seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Optional:
Piston rod with male thread B Piston diameter [mm] 80 Stroke [mm] 15 Version Standard KF (piston rod female thread) M 12 G (compressed air port) G 1/8" Repair sets SFS 80 REP AD [mm] 25 AF [mm] 21 BG [mm] 25 CH [mm] 22 E [mm] 92,0 E1 [mm] 3,5 LA [mm] 5 PL1 [mm] 17,0 PL2 [mm] 15,0 RT M 10 S [mm] 10 TG [mm] 72,0 WH [mm] 10 ZA [mm] 54 ZB [mm] 64 Weight 1,3 kg / pcs GTIN 4050571929121 Customs duty number 84123100 RoHS compliant Yes Manufacturer EMC
