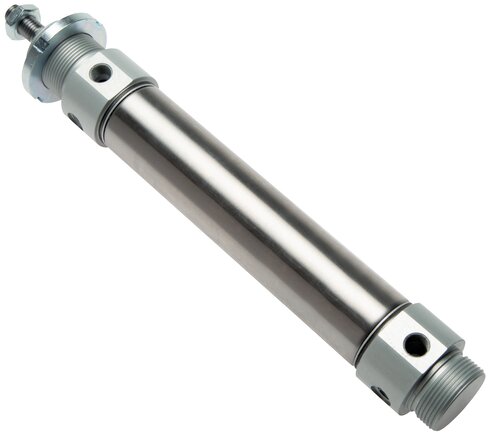

Airtec | DSWPM 32/500 | Round Cylinder | Stroke 500mm | Bore 32mm

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 32 Stroke [mm] 500 Version Standard A (piston rod thread) M 10 B (fastening thread) M 30x1,5 G (compressed air port) G 1/8" B1 [mm] 7 B2 [mm] 35 D1 [mm] 45 D2 [mm] 12 D4 [mm] 38 D5 [mm] 30 D6 [mm] 33,6 D7 M 8x1 F [mm] 20 K [mm] 38 L1 [mm] 148 L2 [mm] 47 L3 [mm] 78 L4 [mm] 30 L5 [mm] 14 CH [mm] 10 Weight 1,2 kg / pcs GTIN 4050571275532 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
