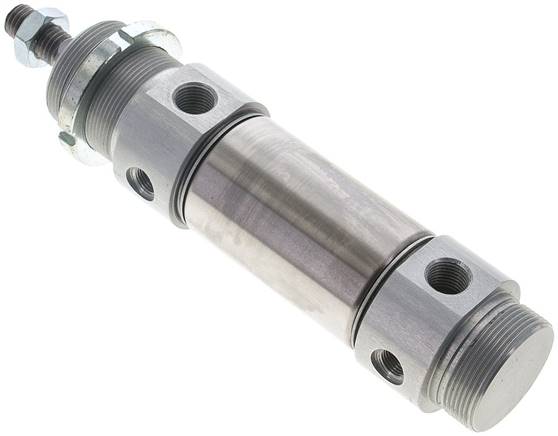

Airtec | DSWPM 40/10 | Round Cylinder | Stroke 10mm | Bore 40mm

Item description

Materials:
Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: hard chromium plated steel, seal: NBR / PUR

Temperature range:
20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1 Piston diameter [mm] 40 Stroke [mm] 10 Version Standard A (piston rod thread) M 12 B (fastening thread) M 38x1,5 G (compressed air port) G 1/4" B1 [mm] 8 B2 [mm] 42 D1 [mm] 50 D2 [mm] 16 D4 [mm] 46 D5 [mm] 38 D6 [mm] 41,6 D7 M 10x1 F [mm] 24 K [mm] 45 L1 [mm] 172 L2 [mm] 57 L3 [mm] 87 L4 [mm] 35 L5 [mm] 16 CH [mm] 12 Weight 750 g / pcs GTIN 4050571275563 Customs duty number 84123100 RoHS compliant Yes Manufacturer Airtec
