Description

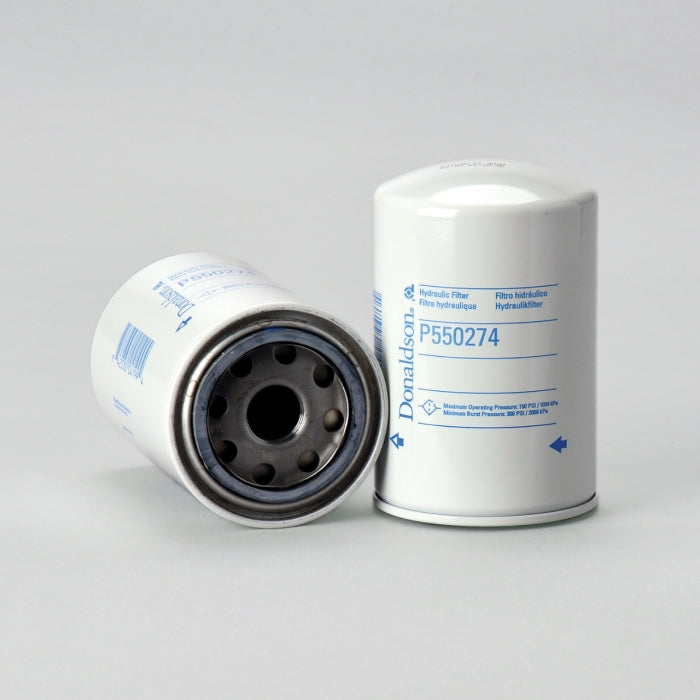

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Mesh Rating | 150 micron |
| Outer Diameter | 94.5 mm (3.72 inch) |
| Thread Size | 1-12 UN |
| Length | 146.3 mm (5.76 inch) |
| Gasket OD | 71.9 mm (2.83 inch) |
| Gasket ID | 62.5 mm (2.46 inch) |
| Efficiency Beta 2 | 150 micron |
| Style | Spin-On |
| Series | SP15/25 |
| Media Type | Wire Mesh |
| Primary Application | ZINGA AE100 |
