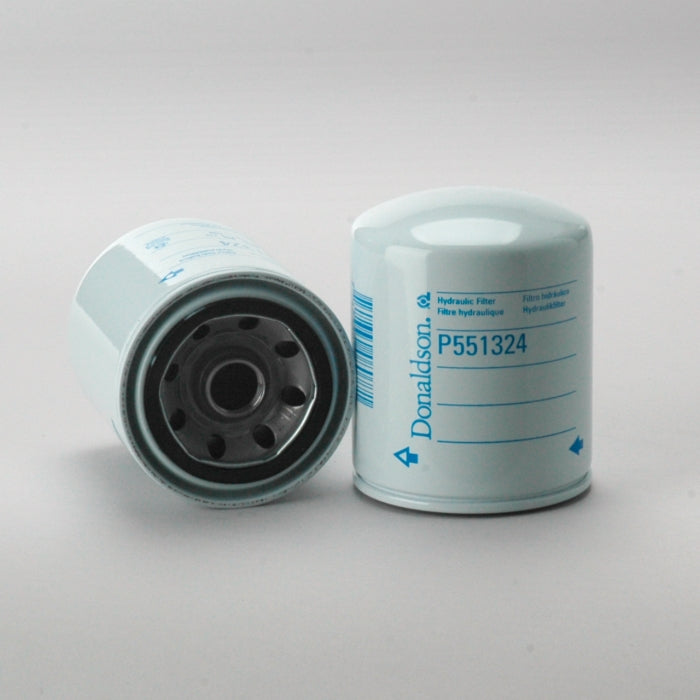

Description
• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 93 mm (3.66 inch) |
| Thread Size | 13/16-16 UN |
| Length | 114.8 mm (4.52 inch) |
| Gasket OD | 72.5 mm (2.85 inch) |
| Gasket ID | 61.5 mm (2.42 inch) |
| Efficiency Beta 2 | 1 micron |
| Efficiency Beta 1000 | 23 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.4 bar (20 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
