Description

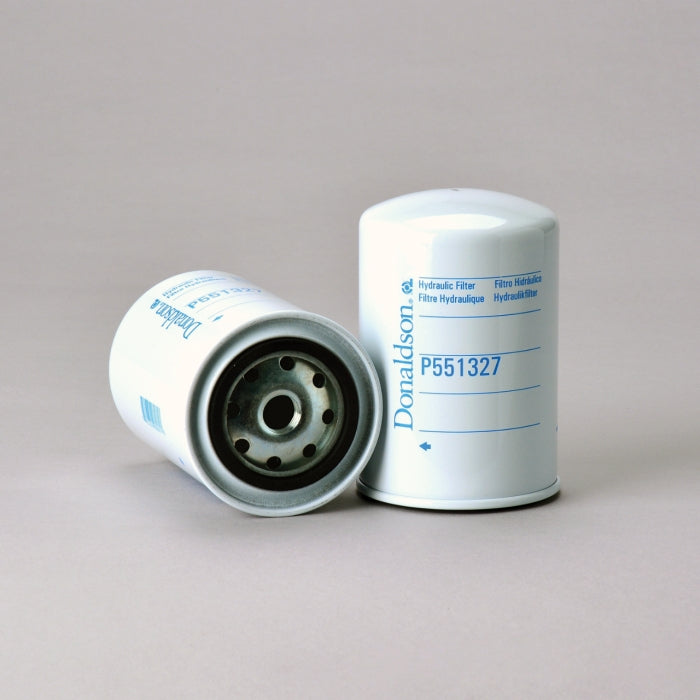

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 95.5 mm (3.76 inch) |
| Thread Size | 3/4-16 UN |
| Length | 144.3 mm (5.68 inch) |
| Gasket OD | 71.8 mm (2.83 inch) |
| Gasket ID | 62 mm (2.44 inch) |
| Efficiency Beta 2 | 27 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 1.6 bar (23 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | HYSTER 1328691 |
