Description

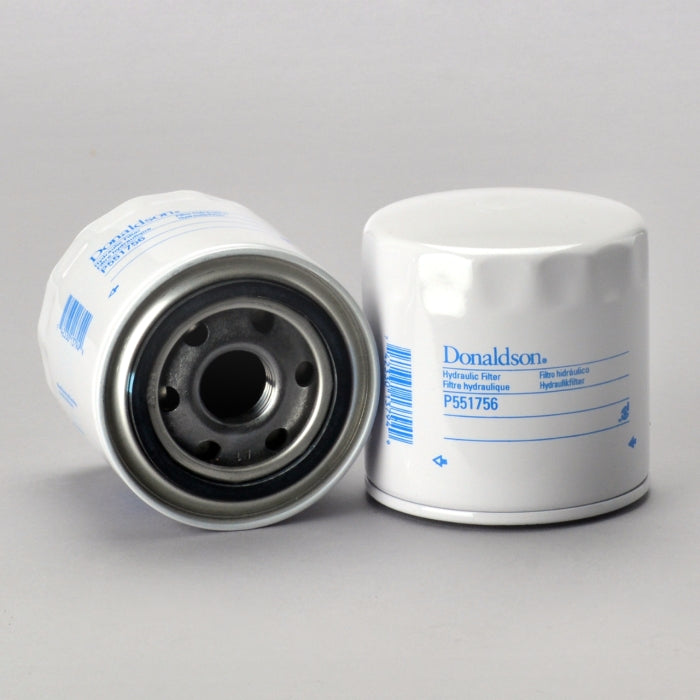

• High-performance Hydraulic Spin-On filters utilize Donaldson media technology which undergoes stringent design and testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
• Donaldson Media Formulations provide superior hydraulic system protection.
• Donaldson offers the largest selection of replacement hydraulic Spin-On filters for greater contamination control
• A variety of filters which meet and/or exceed OEM specifications
Specifications:
| Outer Diameter | 93.21 mm (3.67 inch) |
| Thread Size | 1-12 UN |
| Length | 96.11 mm (3.78 inch) |
| Gasket OD | 71.98 mm (2.83 inch) |
| Gasket ID | 62.53 mm (2.46 inch) |
| Efficiency Beta 75 | 34 micron |
| Efficiency Test Std | SAE J1858 |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.5 bar (7 psi) |
| Bypass Valve Setting HR | 0.7 bar (10 psi) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH 404886R1 |
