Description

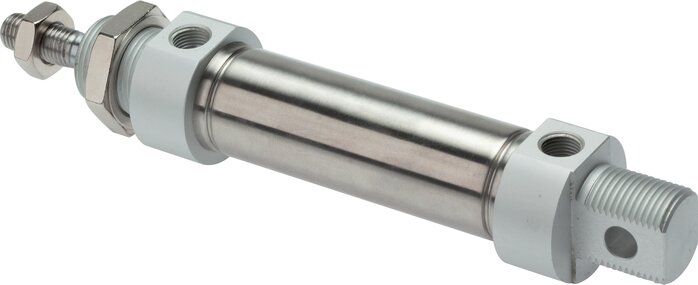

Genuine EMC ZDM 20/200 E – ZDM 20/200 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 200 mm. Designed for reliable performance in demanding industrial pneumatic systems, this component is ideal for maintenance, repair, and OEM applications.
- Part Number: ZDM 20/200 E
- Brand: EMC
- Product Type: Pneumatic Component
Available for fast UK delivery from Roladex Industrial. Trade accounts welcome.
Genuine EMC ZDM 20/200 E – ZDM 20/200 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 200 mm. Designed for reliable performance in industrial pneumatic systems, this component is suitable for maintenance, repair, and OEM applications.
- Part Number: ZDM 20/200 E
- Brand: EMC
- Product: ZDM 20/200 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 200 mm
Trusted by engineers across the UK, this ZDM 20/200 E (EMC) ISO 6432 cylinders, double acting, piston 20 mm, stroke 200 mm is available for fast nationwide delivery from Roladex Industrial Supplies.
Item description
Materials:Head and foot: anodized aluminium, cylinder tube: 1.4301, piston rod: 1.4305, seal: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D in combination with fastening D1, C in combination with fastening C1
| Piston diameter [mm] | 20 |
| Stroke [mm] | 200 |
| Version | Standard |
| A (piston rod thread) | M 8 |
| B (fastening thread) | M 22x1,5 |
| G (compressed air port) | G 1/8" |
| A1 [mm] | 8 |
| C [mm] | 29,0 |
| D [mm] | 16 |
| E [mm] | 8 |
| F [mm] | 20 |
| G [mm] | 95 |
| K [mm] | 24 |
| L [mm] | 20 |
| M [mm] | 126 |
| N [mm] | 12 |
| P [mm] | 62 |
| CH [mm] | 6 |
| Weight | 340 g / pcs |
| GTIN | 4050571930578 |
| Customs duty number | 84123100 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
